Motic BA210 LED Microscope Binocular

Code: MIC2004 D2-172

Advanced upright microscopes for transparent samples from natural sciences. Sections, smears and native transparent samples are displayed by high-quality Plan Achromat objectives. Students and lab ...


read more

Your Price
£876.00 EACH
£1,051.20 inc. VAT

5 Year Warranty
Service Centre

Advanced upright microscopes for transparent samples from natural sciences. Sections, smears and native transparent samples are displayed by high-quality Plan Achromat objectives. Students and lab technician benefit from the pre-installed setup of optics and 3W LED illumination, ready to start. The BA210 LED Digital (MIC2008) also features an integrated 5MP camera with a full Motic Images 3.0 software is ready for documentation.

  • The BA210LED optics are based on CCIS® EC Plan Achromatic objectives for transparent samples from education or small labs. The N-WF 10X/20 eyepieces provide a fast sample overview, with a maximum ease of use in adjusting the eyepieces to an individual eye sight.
  • The BA210LED microscopes feature a 3W LED illumination system in a Fixed Koehler setup. A high-quality condenser with NA 1.25 enables the visualisation of weakly or non-stained samples.
  • The traditional stage with slide-holder enables a safe and long-term x/y scanning. BA210LED’s hard-coated stage is designed for a rough usage in daily work. A coaxial coarse/fine focus with tension adjustment and 2µm minimum increment allows a smooth focusing.
  • The BA210LED Series allows choice between positive and negative Phase contrast, a rare option in microscopy. While the positive version is the established standard, some users prefer the negative version. Polarisation contrast and Darkfield (up to objective N.A. 0.65) are easily verified options.

ModelBA210 LED Binocular
Observation tubeBinocular head, Siedentopf type
Optical systemColour Corrected Infinity Optical System (CCIS®)
Inclination30° inclined, 360° rotating
Interpupillary distance55-75mm
Diopter adjustmentOn both eyepieces, +/- 5 diopter
EyepiecesWidefield N-WF10X/20mm with diopter adjustment
NosepieceReversed quadruple
Objective classificationCCIS® EC Plan Achromatic, DIN
Objectives4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
Objective mounting threadW 4/5""x1/36"" (RMS standard)
Stand typeUpright
StageMechanical stage with built-in low position coaxial stage control and sample holder
Stage size140x135mm
Travel range X&Y76x50mm
CondenserFocusable Abbe condenser N.A. 1.25 with slot for contrast sliders
DiaphragmIris diaphragm
Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
Fine focus precision2µm
Focusing stroke25mm
Upper limit stopUpper limit stop preset but adjustable
Filter holderOn top of the illuminator
Transmitted illuminationLED 3W with intensity control
TransformerInternal
Power supply100-240V (CE)
Accessories includedDust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw
Dimensions LxWxH360x220x395mm
Weight Net7.2kg

Code
Description
Unit Size
List Price
Qty
MIC2006
Unit:EACH
List Price: £1,202.69
Source:List Price
ADD
Code
Description
Unit Size
List Price
Qty

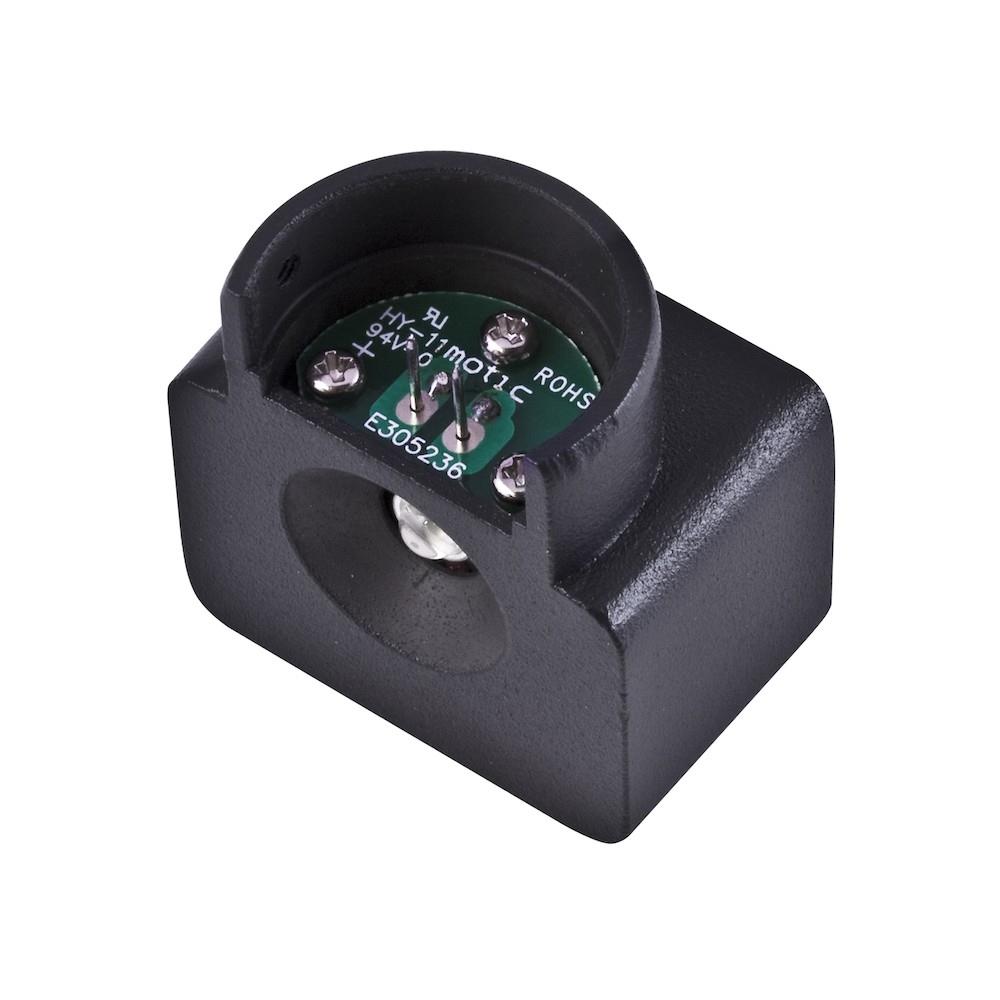

MIC1576
Unit:EACH
List Price: £94.34
Source:List Price
ADD

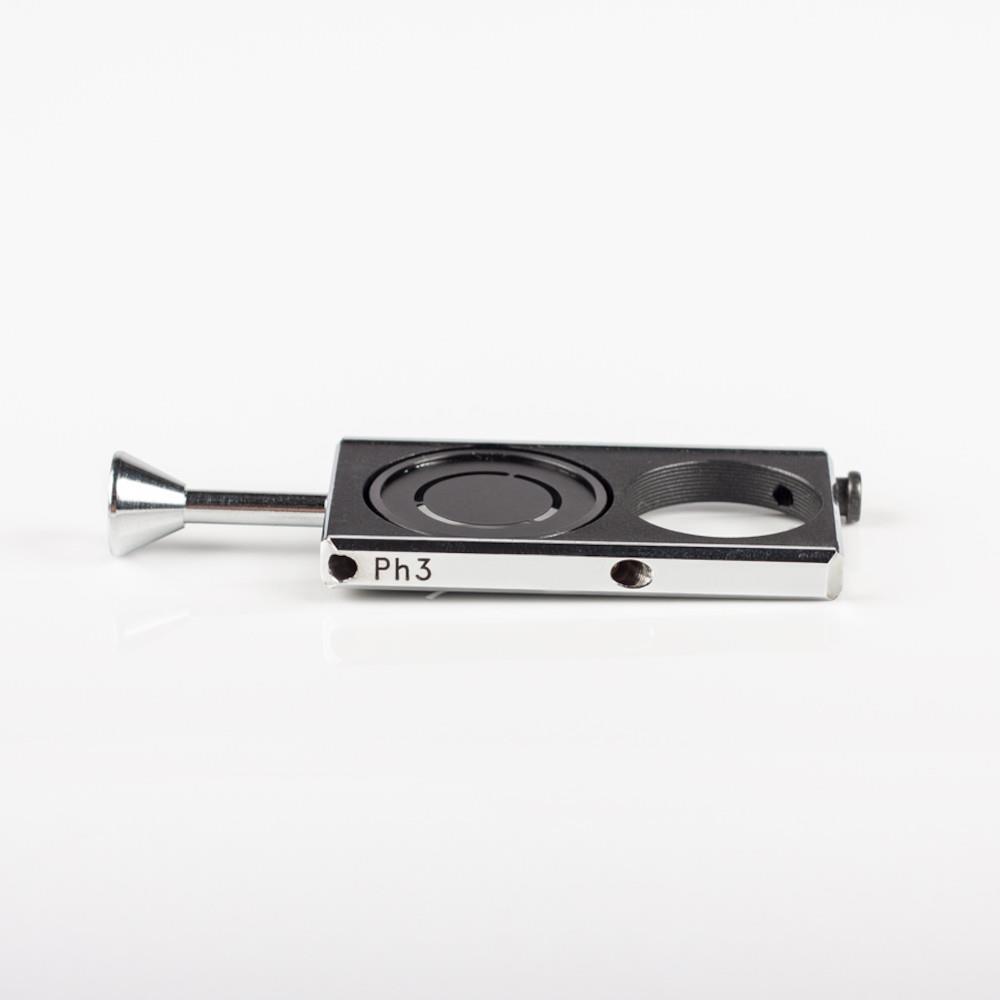

MIC1586
Unit:EACH
List Price: £67.28
Source:List Price
ADD
