MIC6660

The modern MicroBlue microscopes are entry-level models for secondary schools. The range includes the following features as standard:

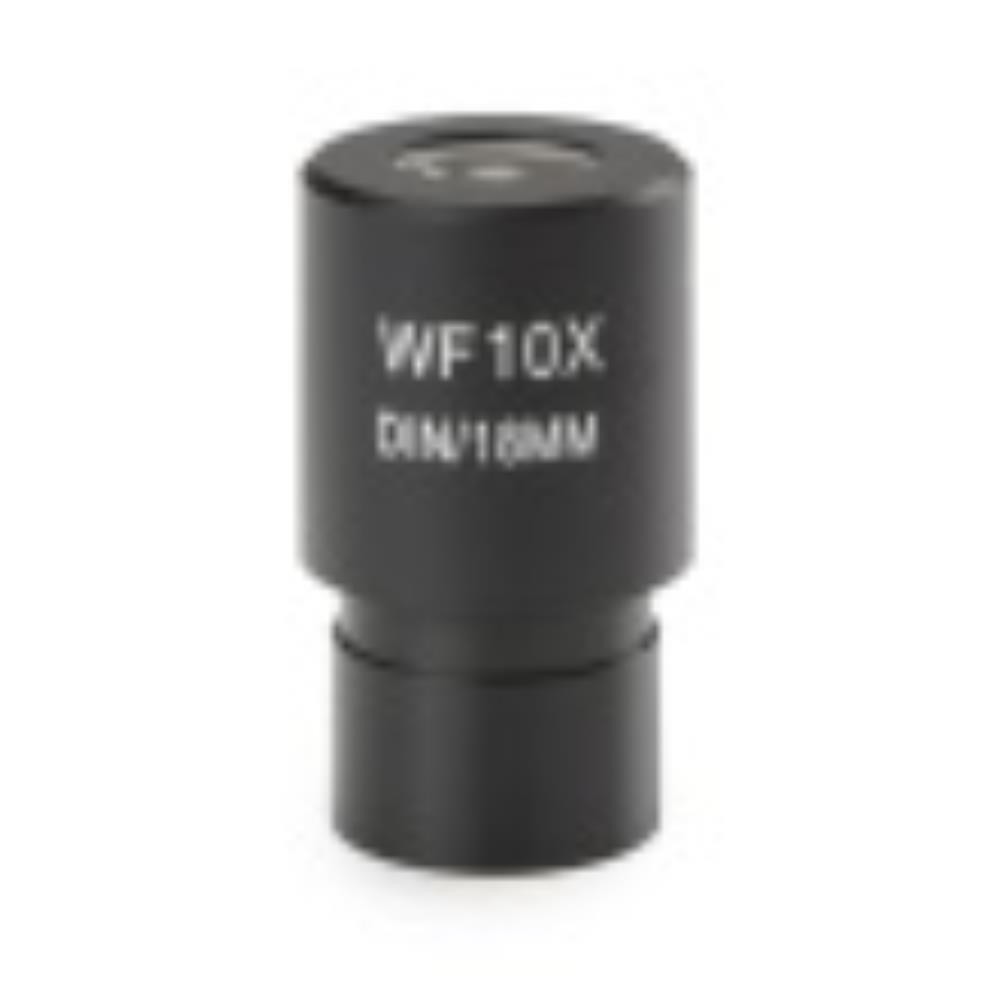

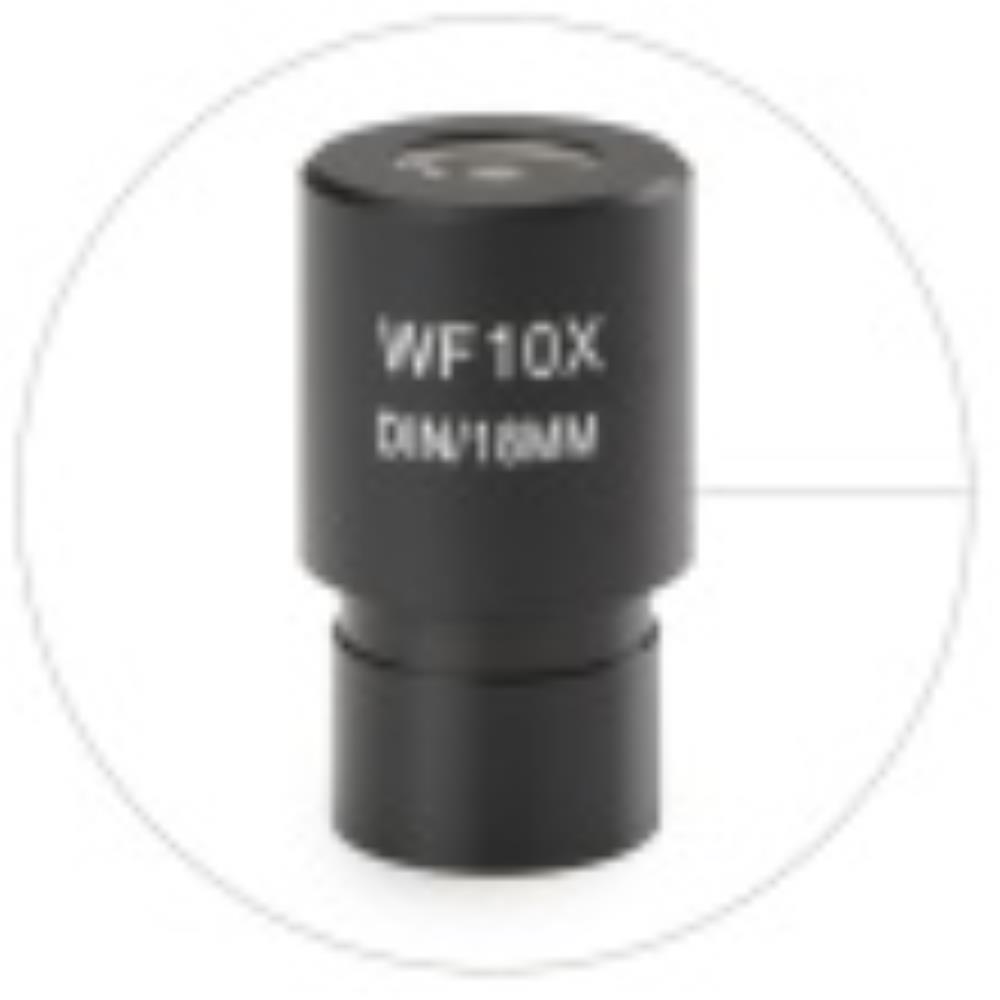

Wide field WF 10x/18mm eyepiece, monocular models have fixed pointer
360° rotatable head: 45° inclined tubes
Revolving nosepiece for three or four reversed objectives
Objectives: achromatic 4x/0.10, 10x/0.25 and S40x/0.65, the S40x, S60x and S100x oil immersion objectives are spring loaded
Focusing: coaxial coarse and fine adjustments
Stages: basic model (MIC6660) has plain stage with two clamps, all other models supplied with X-Y mechanical stage
Condenser: basic model (MIC6660) has single N.A. 0.65 condenser with built-in iris diaphragm, all other models supplied with height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
All monocular versions have 1W LED illuminator, binocular models have replaceable 1W NeoLED™ illumination system
Included: mains adapter-charger, white filter, dust cover, user manual

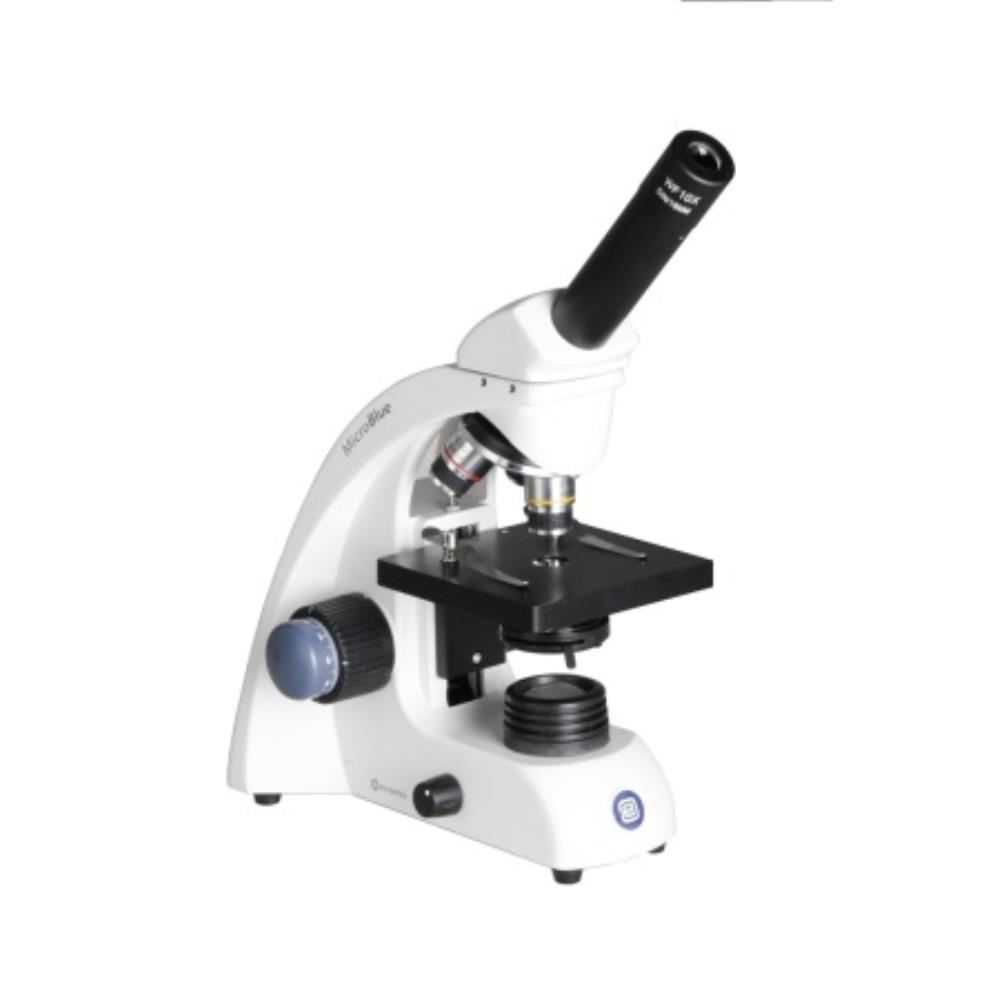

MIC6660: basic monocular model, 4, 10, S40x objectives
MIC6662: monocular model, 4, 10, S40, S100x objectives, X-Y mechanical stage, Abbe condenser, 5mL immersion oil
MIC6663: binocular model, 4, 10, S40, S100x objectives, X-Y mechanical stage, Abbe condenser, 5mL immersion oil, NeoLED illumination
3 year warranty for mechanical and optics, 2 year warranty for electrical parts
