LOG3120 Display Image

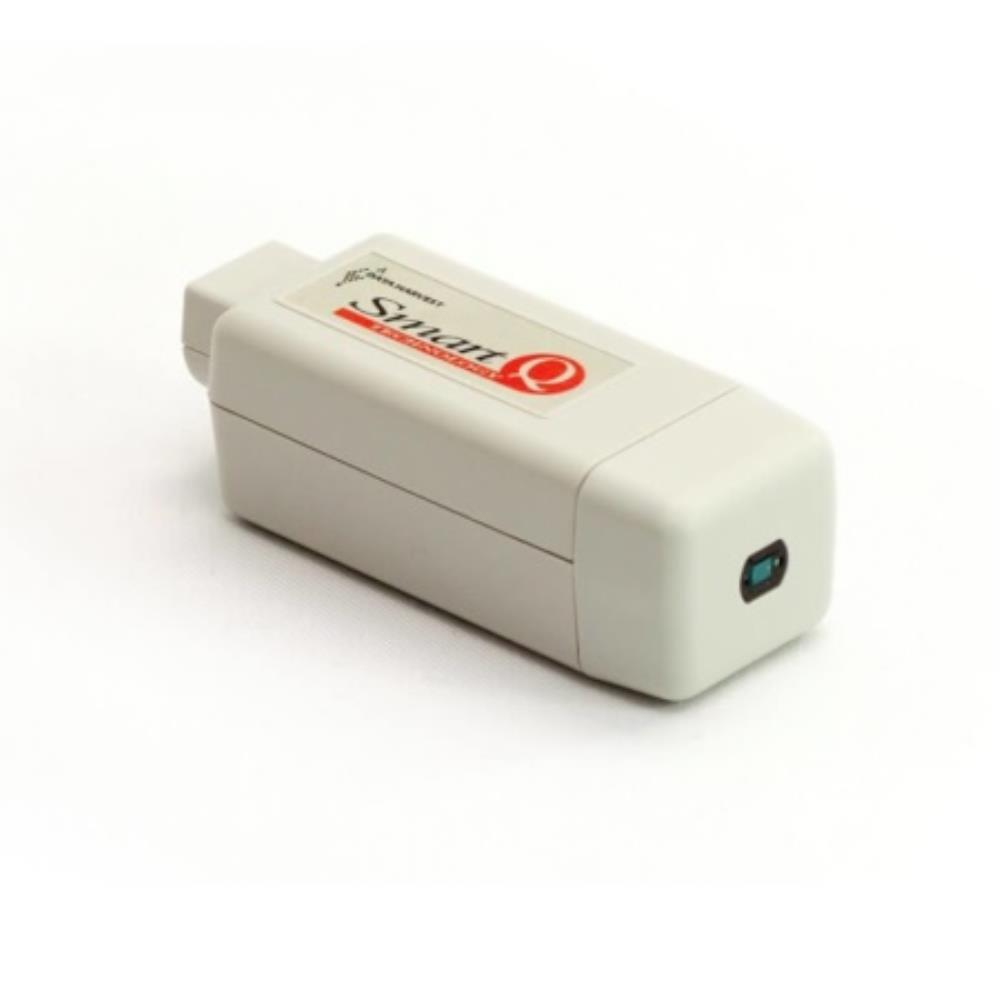

Data Harvest Light Level Sensor

Code: LOG3120 N1-1

This 5 range sensor cleverly measures light levels from 0 through to 100,000 Lux.

Four of the ranges are for general purpose use as they have filtering incorporated to eliminate the unwanted ...


read more

Your Price
£75.00 EACH

5 Year Warranty
Made In Britain

This 5 range sensor cleverly measures light levels from 0 through to 100,000 Lux.

Four of the ranges are for general purpose use as they have filtering incorporated to eliminate the unwanted effects of modulation from room lighting (50Hz).

The fast response range has no filtering and will clearly show the modulation on an incandescent or fluorescent light. Point the sensor at a computer monitor to observe its refresh time.

Applications include:

  • Centripetal force in a pendulum
  • Inverse Square Law
  • Environmental monitoring
  • Colorimeter experiments
  • Yeast growth
  • Absorption of light
  • AC modulation

LOG3120
Ranges5
LUX, kLUX0 to 1,000 Lux (Resolution 1 Lux) (For Interior and Lab Lighting Work)0 to 10kLux (Resolution 5 Lux) (Suitable for Strong Local Light Sources)0 to 100kLux (Resolution 43 Lux) (Suitable for Most Outside Light)0 to 1,000Lux Fast (Resolution 1 Lux) (Suitable for Low Light Sources where Intensity is Changing Rapidly)
Transmission, %0 to 110
Light Range Sensitivity, nmFrom 350 to 700
