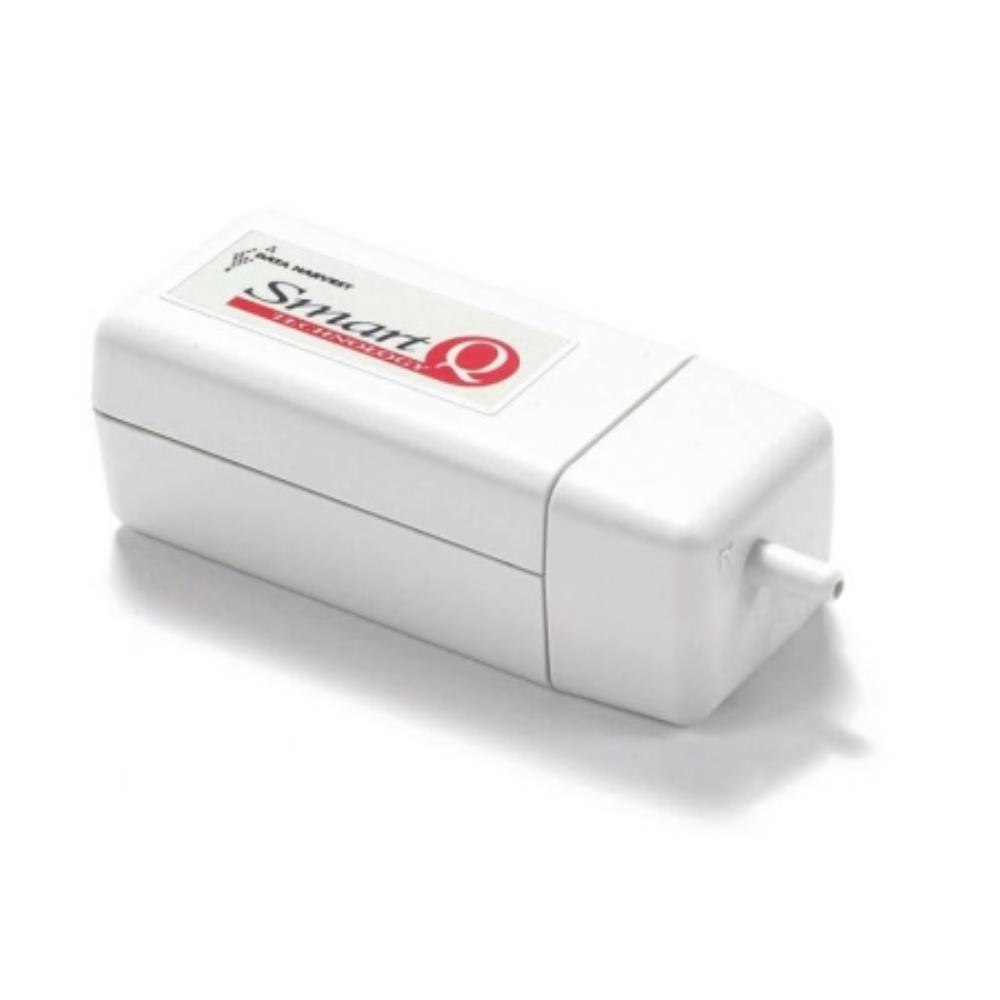

LOG3093 Display Image

Data Harvest Gas Pressure - Absolute Barometer Altimeter

Code: LOG3093 N1-1

These two sensors measure the total pressure on a system. When the single port is left open, then the sensor measures the atmospheric pressure. However, when the sensor is connected to a sealed sys...

read more

£83.00 EACH
List Price

5 Year Warranty

These two sensors measure the total pressure on a system. When the single port is left open, then the sensor measures the atmospheric pressure. However, when the sensor is connected to a sealed system, then it adds the system's pressure effect (negative or positive) to the atmospheric value. LOG3090 can also be used an an altimeter.

Applications include:

  • Atmospheric pressure measurements
  • Altimeter
  • Vapour pressure of liquids
  • Gas Laws

LOG3093
Ranges2, kPa and Hg
kPa0 to 110kPa Absolute

85 to 110kPa Absolute (Resolution 0.1kPa)

Hg0 to 33 in Hg (Resolution 0.01 in Hg)
Altitude, m-500 to 12,000m (Resolution 4m)
ConnectivityMini-Din to Data Logger
BatteryNot Required

Code
Description
Unit Size
List Price
Qty

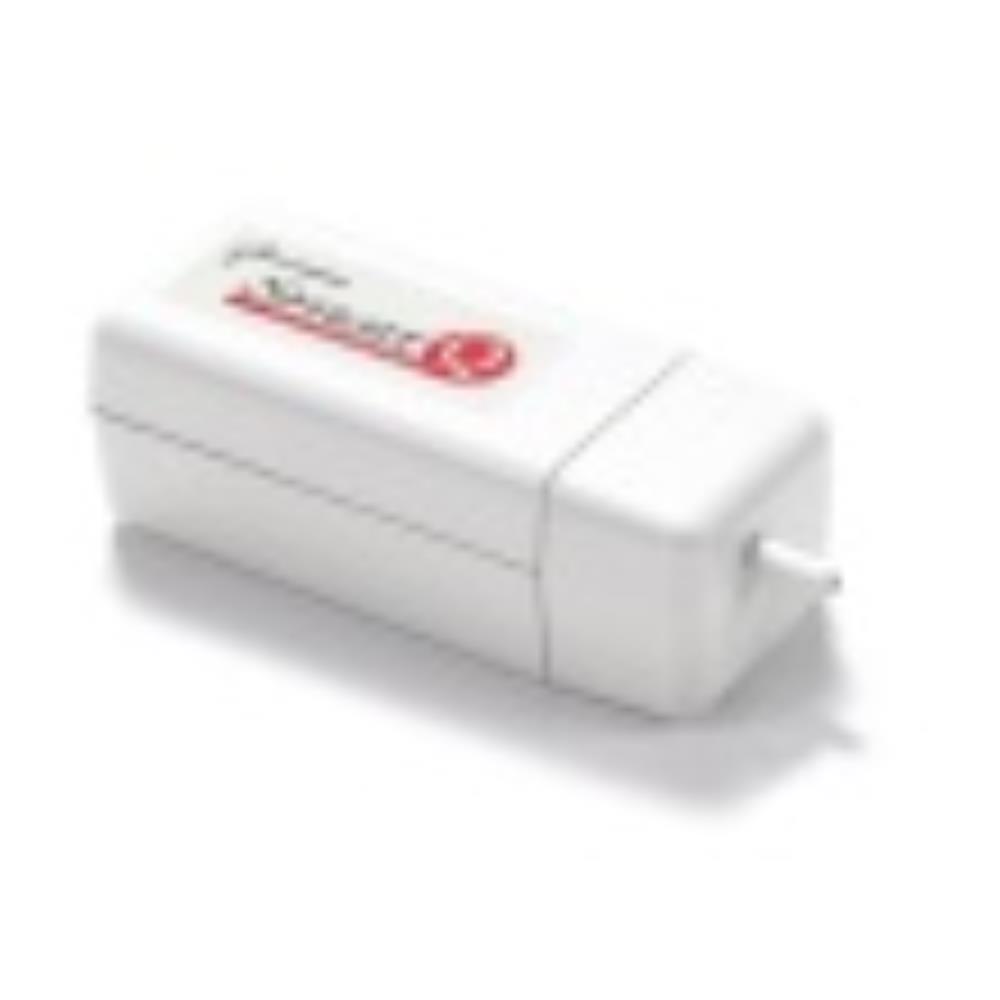

LOG3090
Unit:EACH
List Price: £83.00
Source:List Price
ADD
